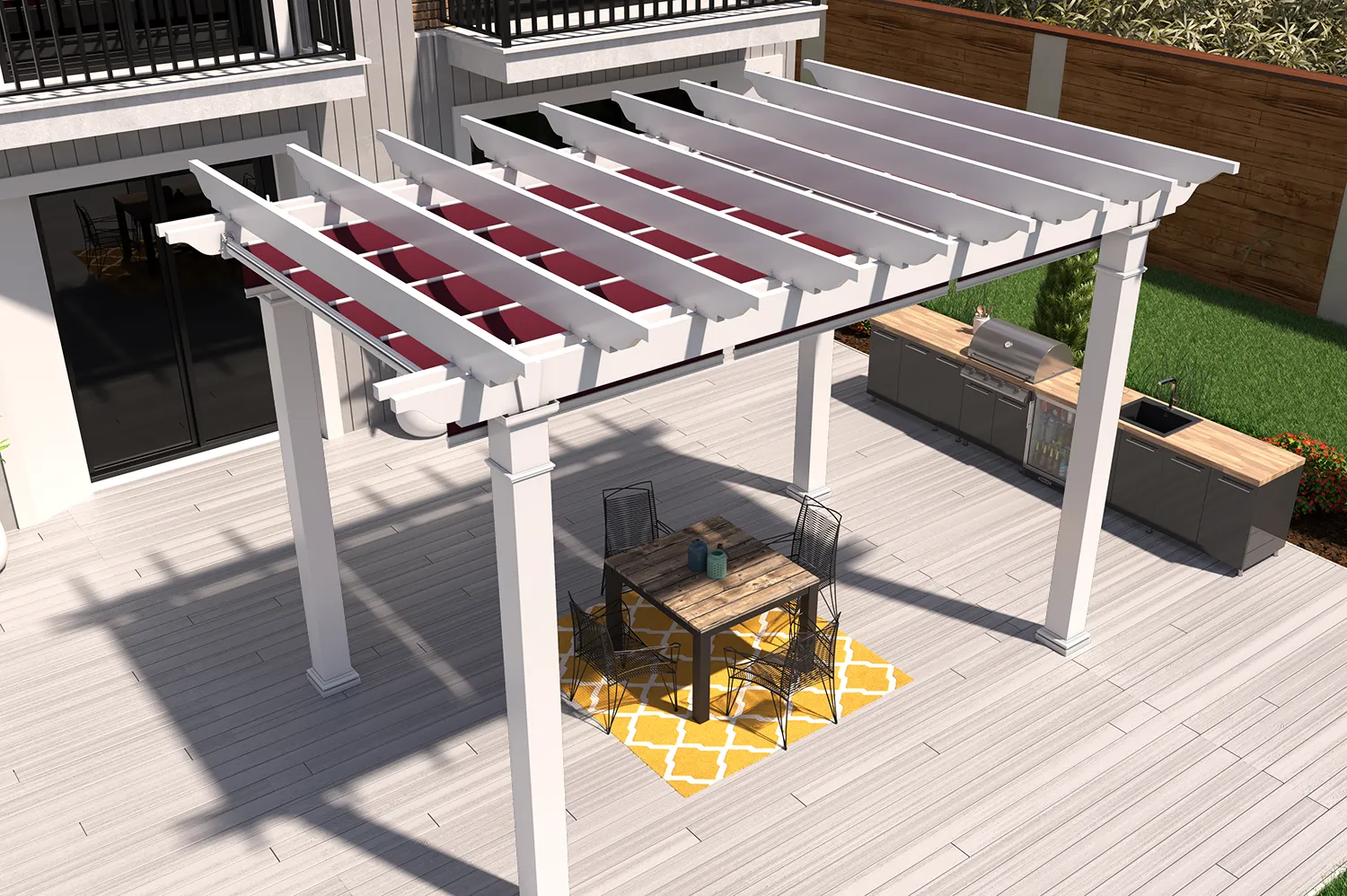

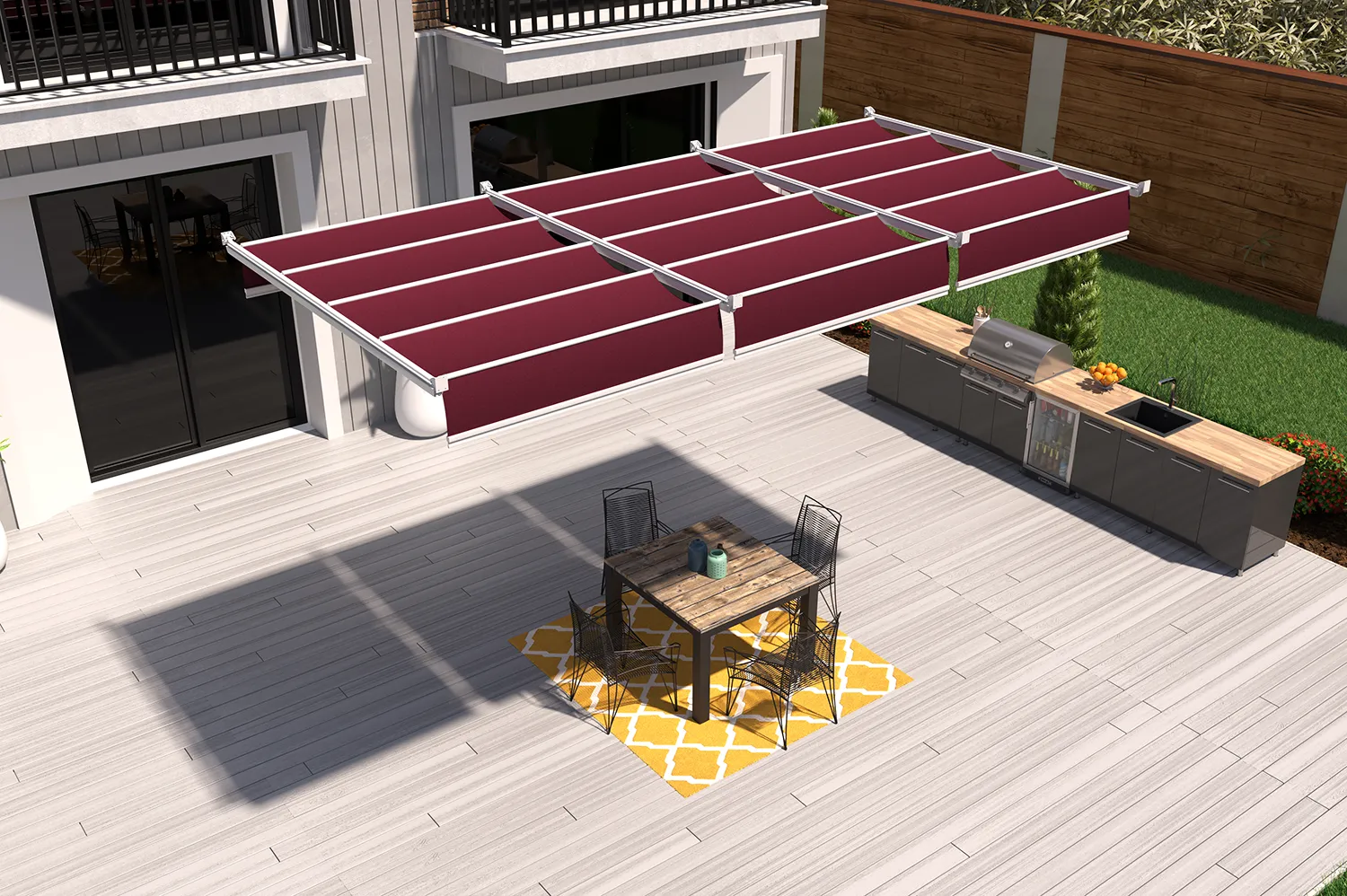

Use the slider to view the retractable canopy system separate from the pergola.
ShadeFlex® Classic, is a simple retractable outdoor canopy for your existing pergola or structure and is designed to attach from beam to beam or building to beam for an attached pergola or shade structure.
This easy-to-install outdoor canopy system is the perfect addition to keep you shaded from the sun or to see the stars shining bright above you.
Simply attach the double-sided tracks from beam to beam or wall to beam, slide in the pre-cut canopies and you’re ready to stay cool in the shade, even on the hottest of days. With durable aluminum tracks and solution-dyed acrylic canopies, the ShadeFlex Classic retractable canopy system creates shade while complementing your existing structure’s style.
Embrace year-round enjoyment with these resilient canopies, designed to endure any weather conditions, rain or shine.
No pergola? No Problem! We offer pergolas and patio covers featuring ShadeFlex outdoor canopies adding stylish shade anywhere outdoors.
The ShadeFlex Classic retractable canopy system is designed to be used between the beams of a pergola or shade structure. Professional-grade canopies extend up to 24 feet without additional braces and can be easily removed for cleaning & winter storage.
Need a different solution?
Our ShadeFlex Fit retractable canopy system is for use when you need to place the canopies beneath existing beams. Or, maybe you’d like to hang the canopies beneath your structures rafters, then the ShadeFlex Cloud retractable canopy is the right solution for you.
Sizes Available: Custom made to your specifications
Track Material: Extruded aluminum
Canopy Length/Projection: up to 24′
Canopy Widths: 30″, 46”, 60”, 80″ and custom widths
Canopy Materials: Sunbrella Solution Dyed Acrylic or Textilene 90 Mesh w/white or black canopy hardware
Track Finish: Powder Coat
ShadeFlex Classic Warranty:
Canopy fabric will be free of defects in material and workmanship under normal and proper use for a period of five (5) years, canopy tracks for ten (10) years and canopy hardware for three (3) years.
For complete warranty information download the ShadeFlex Classic Warranty
The ShadeFlex® Classic Canopy is easy to measure for and install to both new and existing structures. With it’s simple double-track system and easy to follow guides, you’ll spend more time enjoying your canopy, and less time fiddling with installation. For more detailed instructions, we recommend downloading the ShadeFlex® Classic Measuring and Install guides.
Begin by determining the overall width of the canopy installation, ensuring that measurements match on both sides of the structure.
For freestanding structures, measure the distance between beams. Make sure the space is clear of obstructions at least 15 inches below the track mounting level.
For attached structures, measure the distance between the wall and the corresponding beam or wall.
Be sure there is at least 15 inches of vertical clearance below the top of the track mounting location along the rafter projection.
*If there is less than 14 inches clearance available, consult with the Shade Specialist for custom handle lengths.
Determine the required track length by subtracting 5 inches from measurement B.
For this step, we recommend referencing your measurement guide.
Determine the track center-to-center spacing by first subtracting 4 inches from measurement A.
Divide dimension D by the desired number of canopies. This value should be between 34 inches and 64 inches.
For this step, we recommend referencing your measurement guide.
Begin by positioning a corner bracket at least 2 inches offset from adjacent walls if in a closed corner, or flush if in an open area.
Then secure it with the provided screws.
Next, install the remaining brackets based on the spacing shown in your installation guide, ensuring they’re all level and properly aligned.
Pre-drill pilot holes at the end of each track. Then, slide the track end insert into both ends of the track and secure it with screws.
Position one side of the track assembly against the mounting bracket and fasten it.
Repeat this process for the opposite side and for all remaining tracks.
Determine the correct orientation of the canopy by identifying the front slide lock and the roller lock pin.
Begin installation at the rear of the structure with the crossmember containing the front slide lock. Insert the first crossmember into both tracks simultaneously with the locking tab facing upward
Next, install mid crossmembers into both tracks at the same time.
Install the last crossmember into the tracks. Position this final crossmember at the desired stopping point for the canopy, measuring from a fixed reference point to ensure consistent placement across all canopies. Once positioned, tighten the roller lock pin set screw.
Color sets the mood for any outdoor living space.
Peaceful and calm or bold and exciting, your choice of canopy color is the accent that makes your style stand out. We offer premium canopy fabrics from Sunbrella & Textilene to help you design a patio cover or canopy system that fits your style best.
Sunbrella Fabrics: 100% solution dyed acrylic fabrics resistant to mildew and mold, stains and water, and are designed to stay with you season after season.
Textilene 90: Is a high-performance solar screen fabric that effectively blocks up to 90% of the sun’s rays, minimizing heat transfer, glare, and harmful UV radiation.
Backed by an incredible warranty, our structures are resistant to stains & corrosive substances, and are not prone to splinter, crack or rot.
Structures clean easily with soap and water and require no painting, staining, or waterproofing to keep them looking beautiful.
Our all-weather materials are made to withstand all four seasons and a range of climates including hot sun, snowy winters, rain and winds.
Hand made aluminum pergolas designed to last a lifetime resisting rust, looking sharp and keeping your outdoor space usable year round.
Our team of designers, engineers and craftsmen chase perfection in creating pergolas, patio covers and canopies at our factory in Virginia.
Learn how to create the right amount of shade for the perfect outdoor space!
