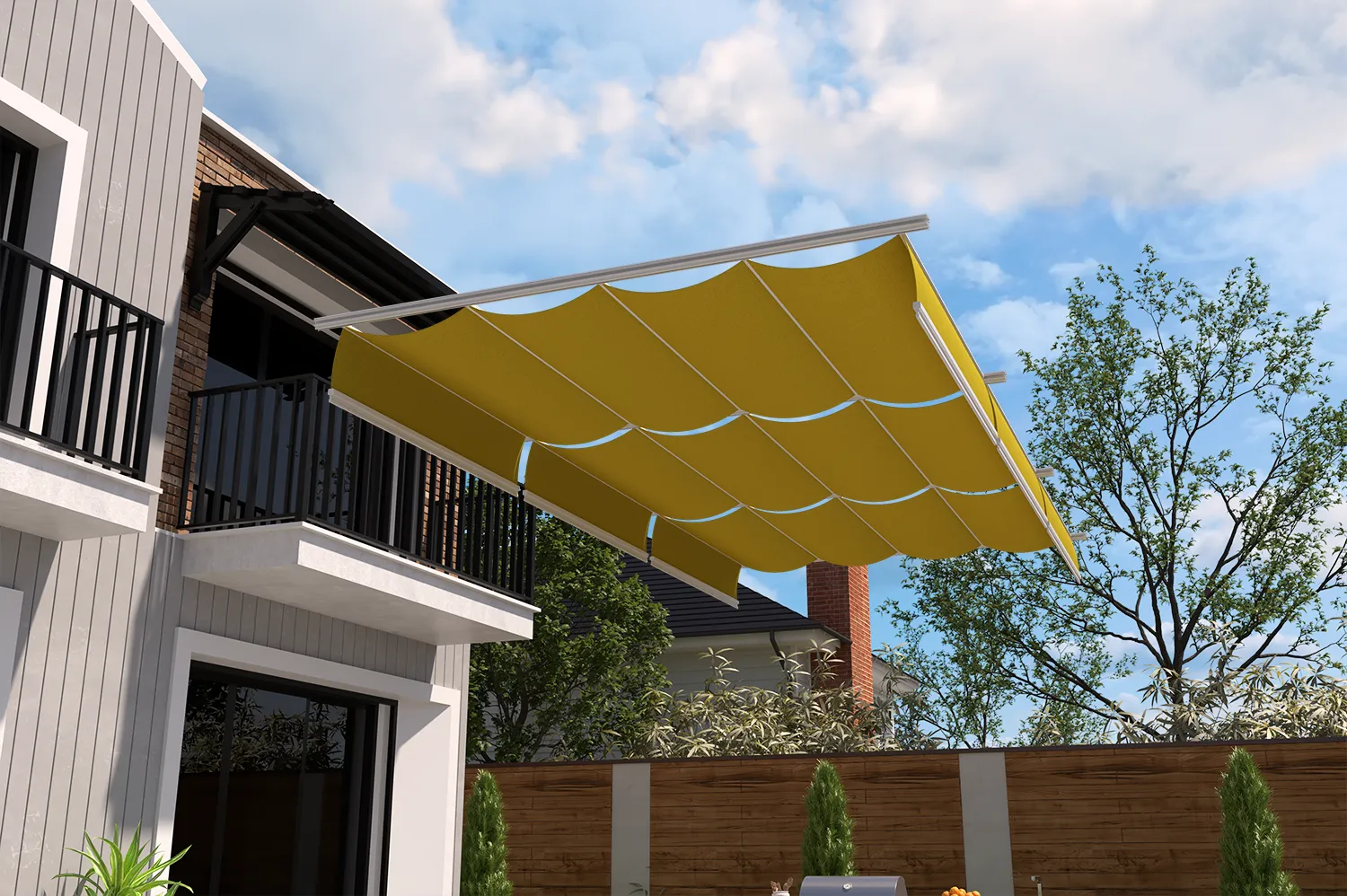

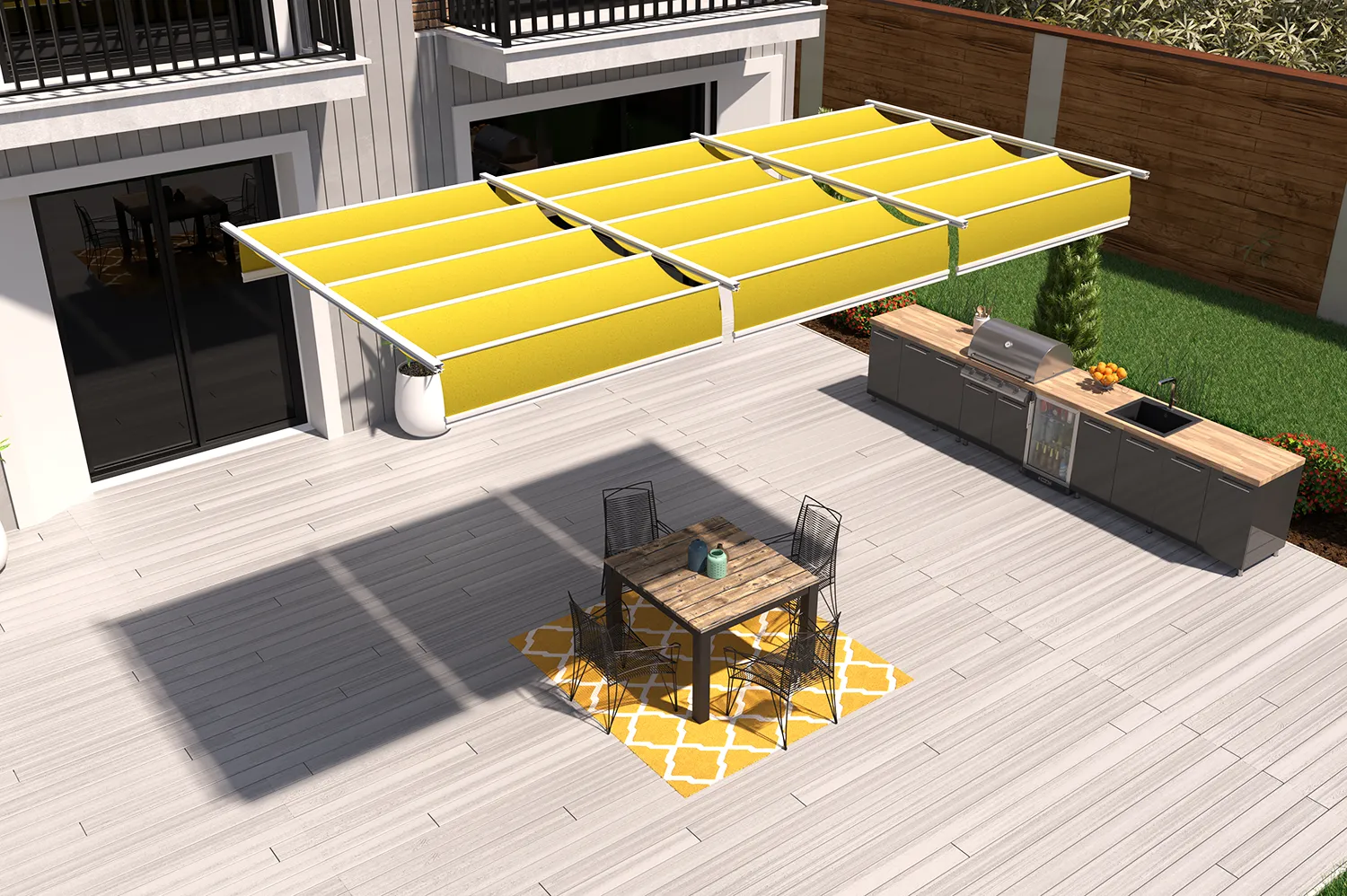

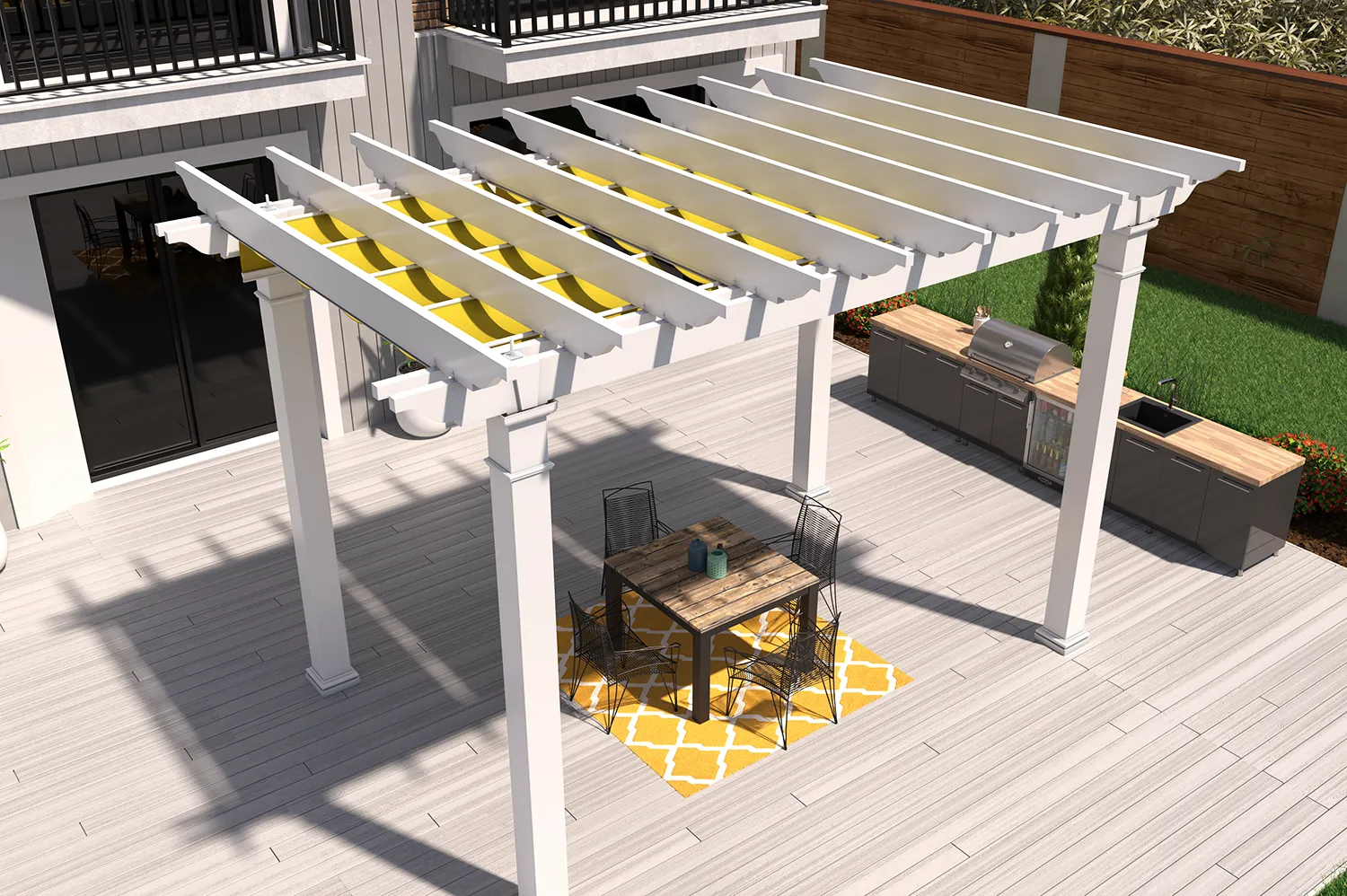

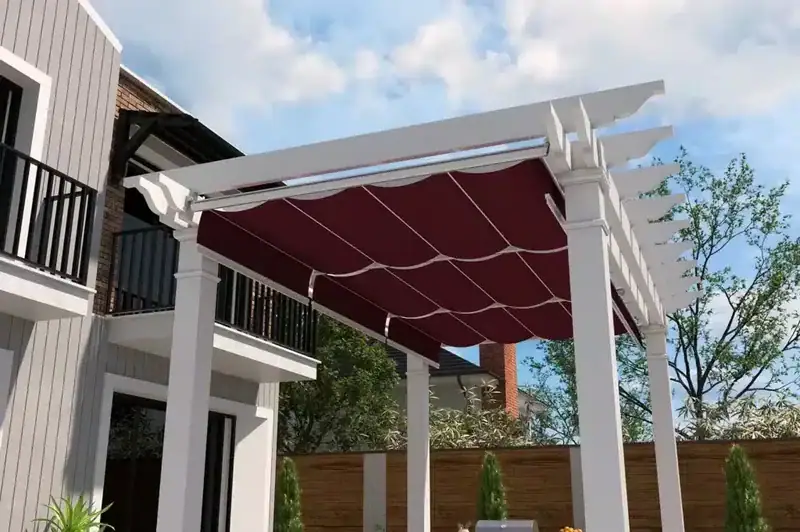

Use the slider to view the retractable canopy system separate from the pergola.

ShadeFlex^® Cloud Retractable Canopy

Starting at $1147.50

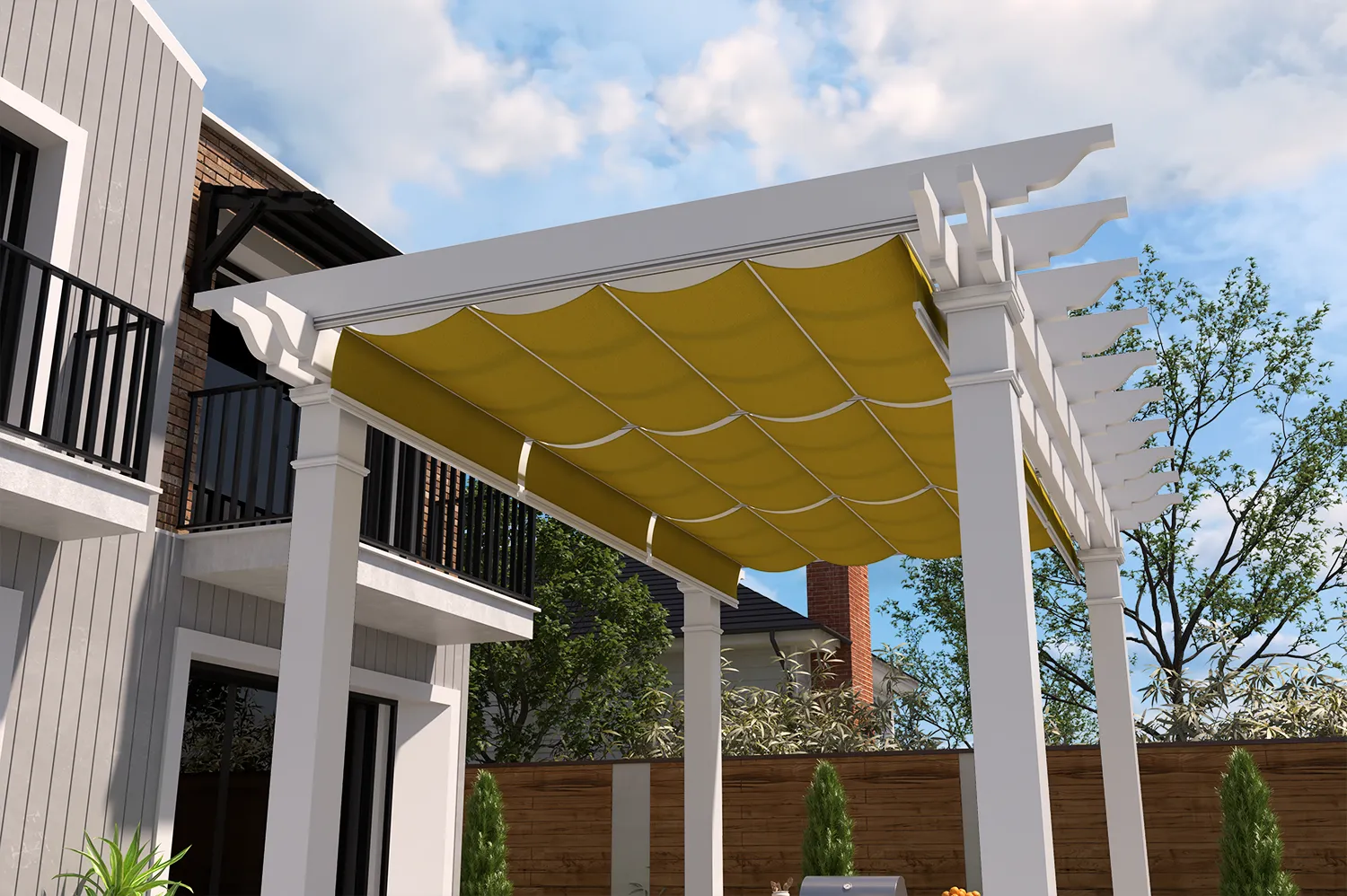

ShadeFlex^® Cloud, is a durable retractable canopy to retrofit an existing pergola or structure and is designed to attach beneath the rafters of your pergola or shade structure.

This easy-to-install retractable canopy system is the perfect addition to keep you shaded from the sun or to see the stars shining bright above you.

Simply attach the tracks beneath the pergola rafters, slide in the pre-cut canopies and you’re ready to stay cool in the shade, even on the hottest of days. With durable aluminum tracks and solution-dyed acrylic canopies, the ShadeFlex Cloud retractable canopy system creates shade while complementing your existing structure’s style.

Embrace year-round enjoyment with these resilient canopies, designed to endure any weather conditions, rain or shine.

No pergola? No Problem! We offer pergolas and patio covers featuring ShadeFlex retractable canopies adding stylish shade anywhere outdoors.

Color Sets the Mood for Every Space

Peaceful and calm or bold and exciting, your choice of canopy color is the accent that makes your style stand out. We offer premium canopy fabrics from Sunbrella & Textilene to help you design a patio cover or canopy system that fits your style best.

Sunbrella Fabrics

100% solution dyed acrylic fabrics resistant to mildew and mold, stains and water, and are designed to stay with you season after season.

Textilene 90

A high-performance solar screen fabric that effectively blocks up to 90% of the sun’s rays, minimizing heat transfer, glare, and harmful UV radiation.

Sunbrella®

Outdoor Canopy Fabrics

Water & Mildew Resistant

100% Solution-Dyed Acrylic

UV Resistant

Solid Colors & Stripes

Stain Resistant

Quick Ship & Custom Selections

Textilene 90®

Outdoor Canopy Fabrics

Water & Mildew Resistant

Solid Colors

Blocks Up to 90% of Sun's Rays

PVC-Coated Polyester Mesh

Reduces Heat Transfer & Glare

Fade Resistant

Built to Last a Generation

Invest in outdoor comfort that outlasts the seasons, completely rust-proof and entirely care-free.

Our Warranty

Backed by an incredible warranty, our structures are resistant to stains & corrosive substances, and are not prone to splinter, crack, or rot.

Low Maintenance

Structures clean easily with soap and water and require no painting, staining, or waterproofing to keep them looking beautiful.

All-Weather

Our all-weather materials are made to withstand all four seasons and a range of climates, including hot sun, snowy winters, rain, and winds.

Highly Durable

Aluminum tracks and quality fabrics built to last: rust-resistant, stylish, and usable year-round.

Made in the USA

Our team of designers, engineers, and craftsmen chases perfection in creating pergolas, patio covers, and canopies at our factory in Virginia.

Product Details

The ShadeFlex Cloud retractable canopy system is designed to be used beneath the beams of a pergola or shade structure. Professional-grade canopies extend up to 24 feet without additional braces and can be easily removed for cleaning & winter storage.

Need a different solution?
Our ShadeFlex Classic retractable canopy system is for use when you need to place the canopies beneath existing beams. Or, maybe you’d like to hang the canopies beneath your structures rafters, then the ShadeFlex Fit retractable canopy is the right solution for you.

Specifications

Sizes Available: Custom made to your specifications

Track Material: Extruded aluminum

Canopy Length/Projection: up to 24′

Canopy Widths: 30″, 46”, 60” and custom widths

Canopy Materials: Sunbrella Solution Dyed Acrylic or Textilene 90 Mesh w/white or black canopy hardware

Track Finish: Powder Coat

Features

Tailored to fit your specifications
ShadeFlex® manually retractable canopies with Sunbrella® fabrics
Up to 24′ canopy projection
Up to 60″ span between tracks, with canopies custom cut to fit your pergola or structure.
Built-In wind protection protects your canopies and structure
Tracks available in Seashell White, Jet Black
System arrives pre-cut, pre-drilled and ready for easy assembly
Step-by-step instructions and installation hardware included
Available for residential & commercial applications

How To Measure

Start By Measuring The Rafter Spacing For Parallel Installation
- To begin, measure the distance between the center of the desired mounting rafters at three different points. Repeat this step for every bay.

Measure The Distance Between Beams or Walls
- For freestanding structures, measure the distance between beams. Ensure the space is clear of obstructions at least 13 inches below the rafters.

  For attached structures, measure the distance between the wall and the corresponding beam or wall.

Measure The Rafter Spacing For Perpendicular Installations
- Measure the outside distance between the desired first and last rafters that will be used to mount the tracks. Next, determine if a canopy overhang is desired.

Ensure You Have Enough Space For Canopy Clearance
- Ensure there is at least 13 inches of vertical clearance under the mounting surface along the rafter projection.

  *If there is less than 13 inches of clearance, consult with a Shade Specialist for custom handle lengths.

Determine Your Required Track Length For Parallel Installations
- Determine the required track length by subtracting 2 inches from measurement B.

  For this step, we recommend referencing your measurement guide.

Determine Number of Canopies and Track Center to Center Spacing For Perpendicular Installation Only
- Determine the track center-to-center spacing by first subtracting 4 inches from measurement B. This creates the necessary gap between the outer tracks and the adjacent surface to allow for WindLock installation. Divide dimension E by the desired number of canopies.

  For this step, we recommend referencing your measurement guide.

How To Install

Start By Preparing The Cloud Track For Installation
- Begin 2 inches from the track end and pre-drill holes. These holes should be spaced every 12 to 18 inches apart using a 1/8 inch drill bit.

  If the track will be installed perpendicular to the rafters, match the hole spacing to the rafter spacing.

Install The Cloud Track End Cap
- Insert an end cap into the front end of each track by compressing the spring tab slightly and inserting it into the track.

Install The Cloud Track Beneath The Rafters
- Secure the track to the mounting surface. Ensure the track is level and that the track center to center dimension matches what is shown in the installation guide.

  For tracks installed along rafters, ensure there is a minimum 2 inch gap on one side of the structure to allow for canopy installation.

  For tracks installed perpendicular to the rafters, secure with screws at each rafter location along the length of the track. Ensure the track is not mounted flush against either side. Maintain a minimum offset of 2 inch from the center of the track to each side

Install The Canopy To The Cloud Track
- Determine the correct orientation of the canopy by identifying the front slide lock and the roller lock pin.

  For attached configurations, the roller lock pin will be located on the wall side.

  For freestanding configurations, the roller lock pin will be located on the side where the fabric will collect when retracted.

Install The Front Slide Lock Crossmember
- Begin installation at the rear of the structure with the crossmember containing the front slide lock. Insert the first crossmember into both tracks simultaneously with the locking tab facing downward.

Install The Mid Crossmembers
- Next, install mid crossmembers into both tracks at the same time.

Install The Roller Lock Pin Crossmember
- Install the last crossmember into the tracks. The roller lock pin should face towards the front of the canopy.

  Position this final crossmember at the desired stopping point for the canopy, measuring from a fixed reference point to ensure consistent placement across all canopies. Once positioned, tighten the roller lock pin set screw.

Install The Cloud Track End Cap
- Insert the remaining end caps at the rear of each track.

Install The Cloud Track End Cap
- Position a WindLock at the end of the track where the canopy will be in the extended position. The secure the WindLock to the rafter track.

  Next, fully retract the canopy and mark the centerline of the first crossmember that contains the front slide locks on the rafter track. Position a second WindLock on the rafter track. Align this WindLock so the mark is centered between the set screw and the spring-loaded mechanism. Tighten all four set screws. Be sure to reference your install guide when needed.

  Tighten or loosen the adjusting screw on the WindLock to set the desired spring tension. The WindLocks are designed to release the fabric during inclement weather. Avoid over tightening the adjusting screw.

Warranty

ShadeFlex Cloud Warranty:
Canopy fabric will be free of defects in material and workmanship under normal and proper use for a period of five (5) years, canopy tracks for ten (10) years and canopy hardware for three (3) years.

For complete warranty information download the ShadeFlex Cloud Warranty
