ShadeFlex^® Fit Retractable Canopy

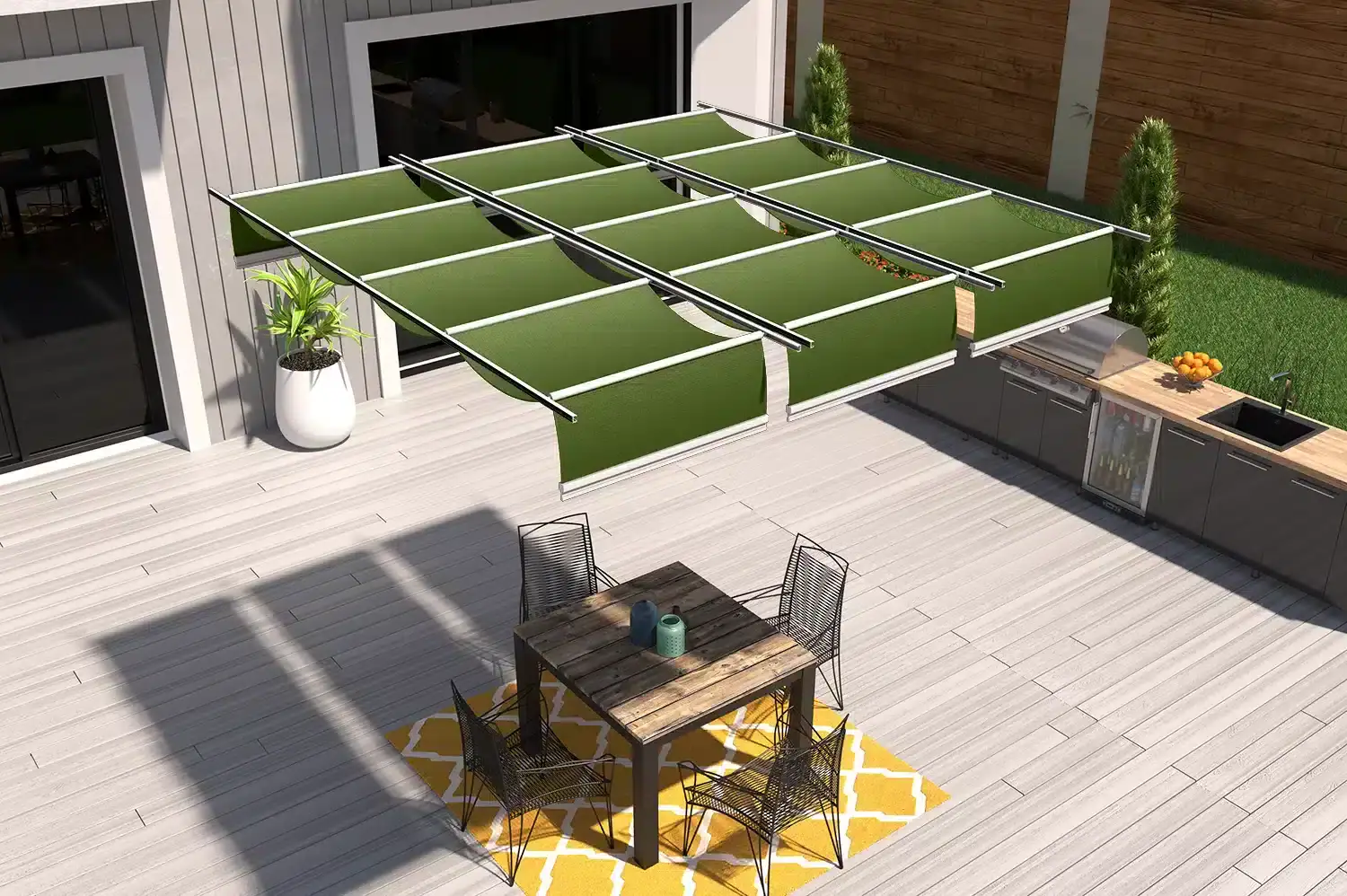

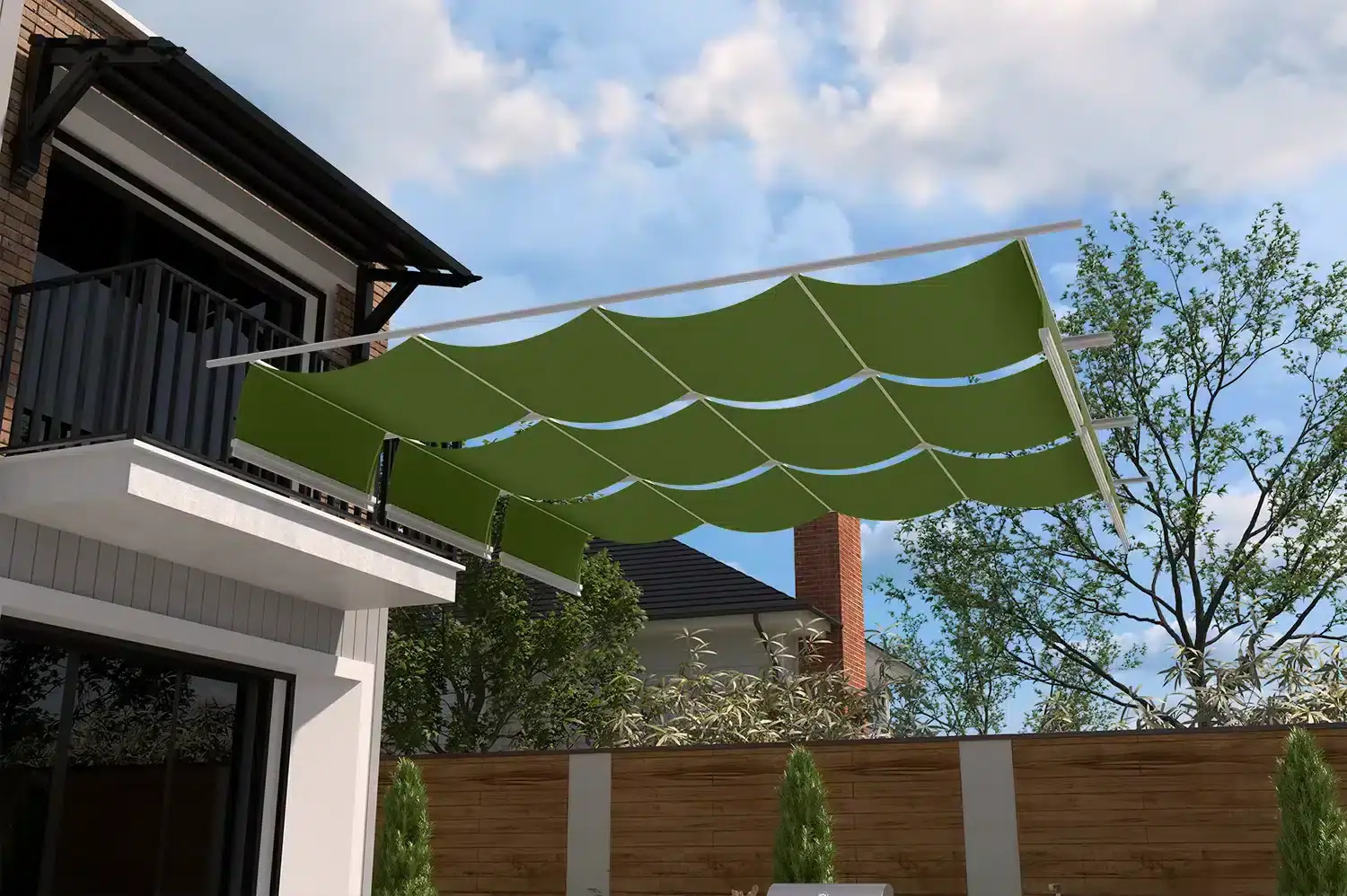

Use the slider to view the retractable canopy system separate from the pergola.

Enjoy the Outdoors More with a Retractable Canopy!

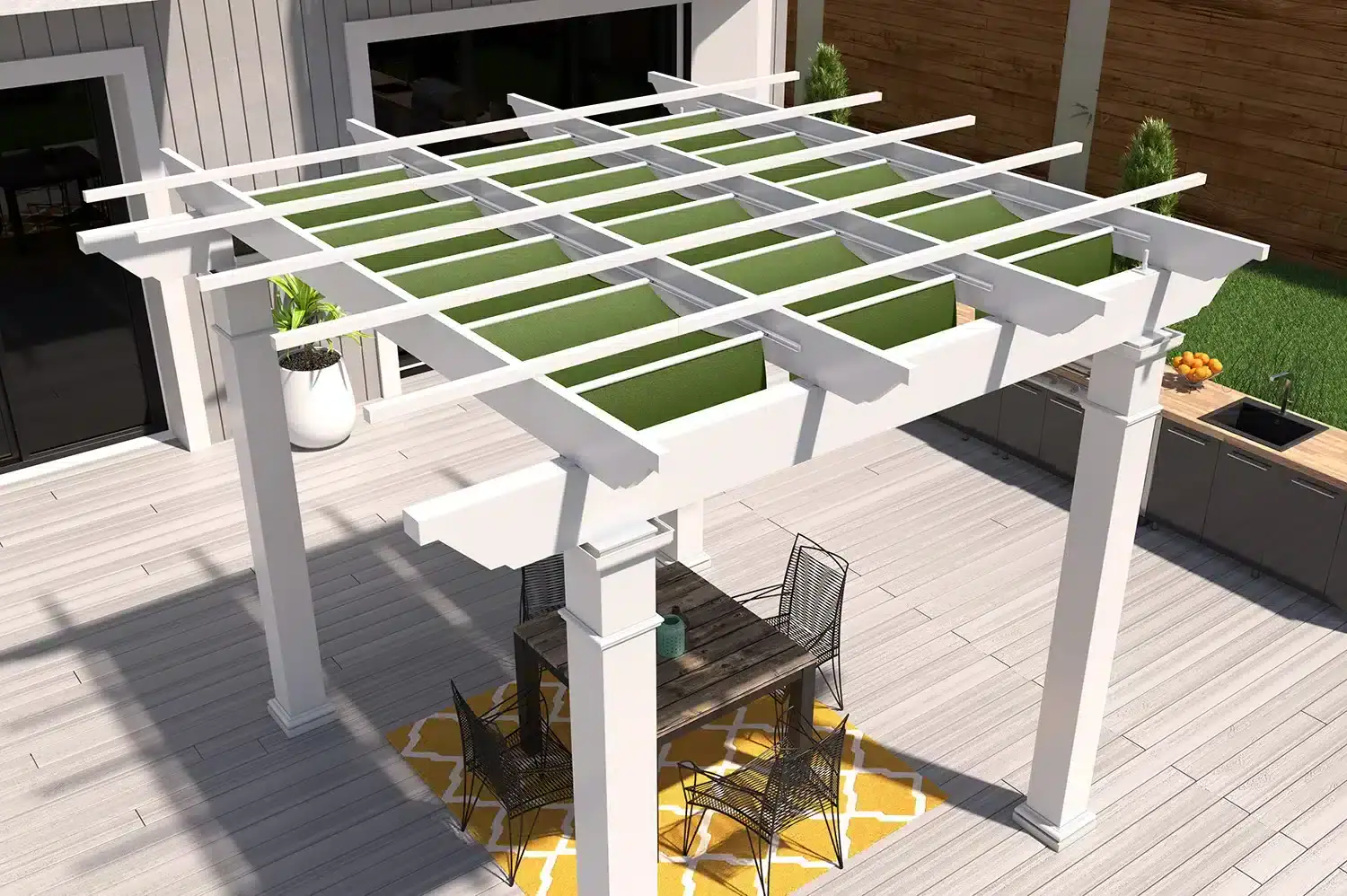

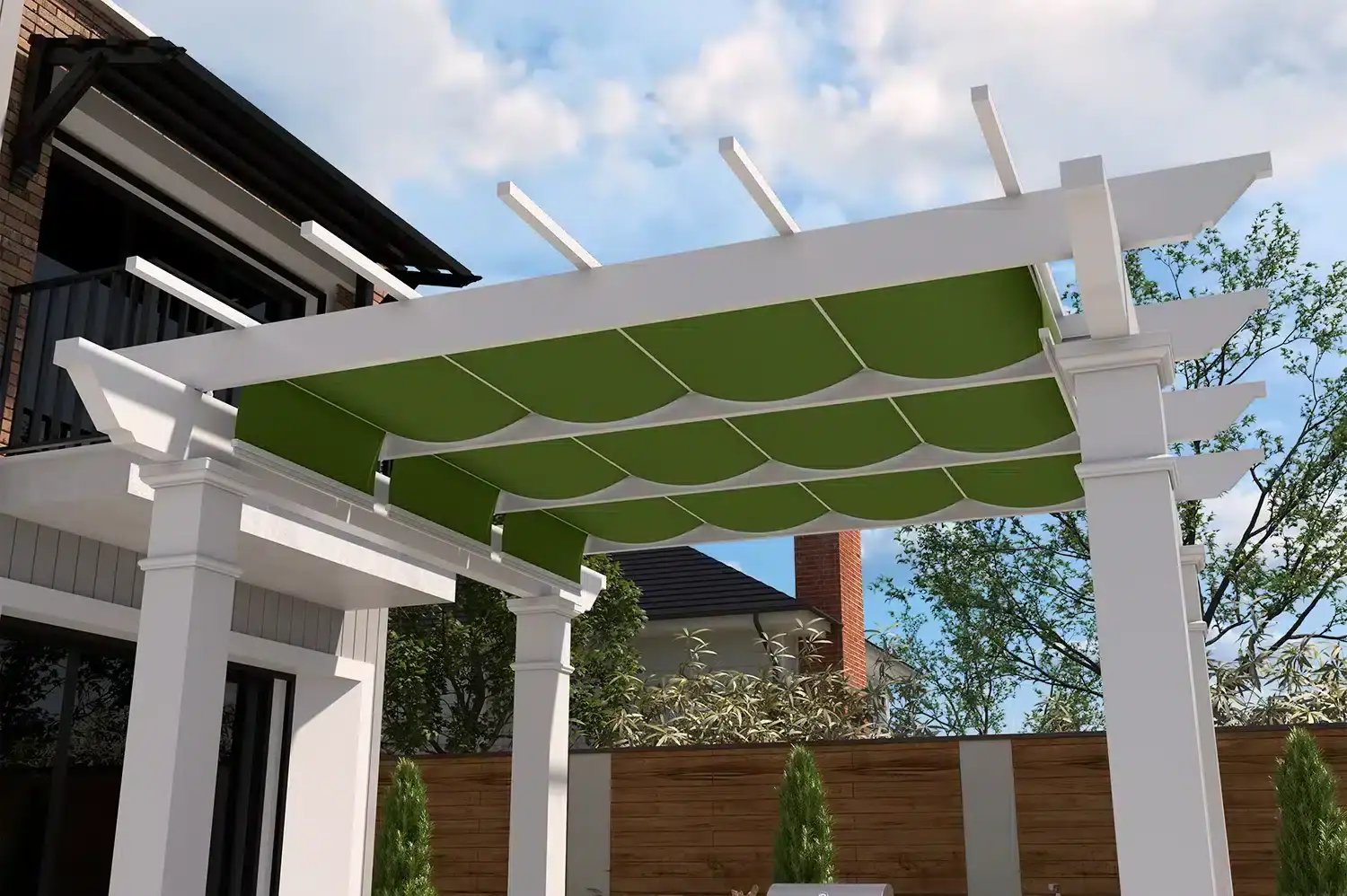

ShadeFlex^® Fit, is an elegant retractable canopy for your existing pergola or structure and is designed to attach between the rafters of your pergola or shade structure.

This easy-to-install retractable canopy system is the perfect addition to keep you shaded from the sun or to see the stars shining bright above you.

Simply attach the tracks to the inside of your pergola rafters, slide in the pre-cut canopies and you’re ready to stay cool in the shade, even on the hottest of days. With durable aluminum tracks and solution-dyed acrylic canopies, the ShadeFlex Fit retractable canopy system creates shade while complementing your existing structure’s style.

Embrace year-round enjoyment with these resilient canopies, designed to endure any weather conditions, rain or shine.

No pergola? No Problem! We offer pergolas and patio covers featuring ShadeFlex retractable canopies adding stylish shade anywhere outdoors.

Description

The ShadeFlex Fit retractable canopy system is designed to be used between the rafters of a pergola or shade structure. Professional-grade canopies extend up to 24 feet without additional braces and can be easily removed for cleaning & winter storage.

Need a different solution?

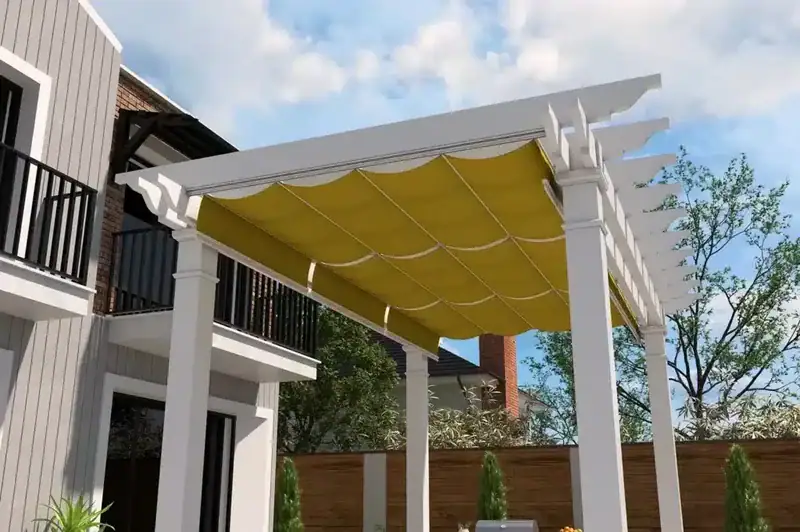

Our ShadeFlex Classic retractable canopy system is for use when you need to place the canopies beneath existing beams. Or, maybe you’d like to hang the canopies beneath your structures rafters, then the ShadeFlex Cloud retractable canopy is the right solution for you.

Features

Tailored to fit your specifications
ShadeFlex® manually retractable canopies with Sunbrella® fabrics
Up to 24′ canopy projection
Up to 60″ span between rafters, with canopies custom cut to fit your pergola or structure.
Built-In wind protection protects your canopies and structure
Tracks available in Seashell White or Jet Black
System arrives pre-cut, pre-drilled and ready for easy assembly
Step-by-step instructions and installation hardware included
Available for residential & commercial applications

Specifications

Sizes Available: Custom made to your specifications

Track Material: Extruded aluminum

Canopy Length/Projection: up to 24′

Canopy Widths: 30″, 46”, 60”, 80″ and custom widths

Canopy Materials: Sunbrella Solution Dyed Acrylic or Textilene 90 Mesh w/white or black canopy hardware

Track Finish: Powder Coat

Warranty

ShadeFlex Fit Warranty:
Canopy fabric will be free of defects in material and workmanship under normal and proper use for a period of five (5) years, canopy tracks for ten (10) years and canopy hardware for three (3) years.

For complete warranty information download the ShadeFlex Fit Warranty

The ShadeFlex® Fit Canopy is easy to measure for and install to both new and existing structures. With it’s simple between the rafter track system and easy to follow guides, you’ll spend more time enjoying your canopy, and less time fiddling with installation. For more detailed instructions, we recommend downloading the ShadeFlex® Fit Measuring and Install guides.

How To Measure For ShadeFlex® Fit

1. Start By Measuring Your Rafter Spacing

Begin by measuring the distance between rafters at three different points. If the measurements vary, use the smallest value. Repeat this step for every bay.

2. Measure The Distance Between Beams or Walls

For freestanding structures, measure the distance between beams.

For attached structures, measure the distance between the wall and the corresponding beam or wall.

3. Ensure You Have Enough Space For Canopy Clearance

Ensure there is at least 14 inches of vertical clearance along the rafter projection (dimension B). Reference your measuring guide as needed.

*If there is less than 14 inches clearance, consult with the Shade Specialist for custom handle lengths.

For this step, we recommend referencing your measurement guide.

4. Determine Your Required Track Length

Determine the required track length by subtracting 2 inches from measurement B. Reference your measuring guide as needed.

For this step, we recommend referencing your measurement guide.

How To Install ShadeFlex® Fit

1. Start By Preparing The Fit Tracks For Installation

If adding to an existing structure, the track comes cut to length and pre-drilled for installation.

If the track needs to be shortened, begin by using a miter saw with a fine-tooth blade. After cutting, remove any burrs.

If additional pilot holes are required, use a 3/16 inch drill bit followed by a 3/8 inch 82-degree countersink bit.

2. Install The Fit Tracks Between The Rafters

Position the track at least 1 and 1/4 inch below the top of the mounting surface to allow clearance for the WindLocks.

For freestanding structures, maintain a consistent offset between the end of the rafters and the track.

For wall-to-wall installations, ensure there is a minimum 2 inch gap on one side of the track to allow for canopy installation.

Secure the track to the mounting surface using the provided screws, ensure it is level and that all screw heads are fully recessed to avoid obstructing the canopy rollers.

3. Splice The Fit Tracks For Multiple Sections If Needed

If multiple sections of track are needed to reach the required length, begin by securing the first section to the mounting surface.

Insert splice pins into the top and bottom channels on the back of the installed track.

Then, slide the second section onto the splice pins, aligning it with the first section. Once aligned, secure the second track to the mounting surface.

4. Install The Canopy To The Tracks

Determine the correct orientation of the canopy by identifying the front slide lock and the roller lock pin.

For attached configurations, the roller lock pin will be located on the wall side.

For freestanding configurations, the roller lock pin will be located on the side where the fabric will collect when retracted.

Ensure the PVC side of the crossmember faces upward and the aluminum side faces downward

5. Install The Front Slide Lock Crossmember

Begin installation at the rear of the structure with the crossmember containing the front slide lock. Insert the first crossmember into both tracks simultaneously with the locking tab facing upward.

6. Install The Mid Crossmembers

Next, install mid crossmembers into both tracks at the same time.

7. Install The Roller Lock Pin Crossmember

Install the last crossmember into the tracks. The roller lock pin should face towards the front of the canopy.

Position this final crossmember at the desired stopping point for the canopy. Once positioned, tighten the roller lock pin set screw.

8. Finish Up By Installing The WindLocks

At the end of the track where the canopy is fully extended, install the correct WindLock based on the canopy’s orientation. Position the WindLock so the stop plate faces the outside of the structure and is flush with the end of the track. Secure using the provided mounting screws.

To locate the WindLock for the retracted canopy position, multiply the number of canopy crossmembers by 1 and 1/4 inch. This distance is the length from the end of the Fit Track to the near edge of the WindLock. Be sure to reference your install guide when needed.

Tighten or loosen the adjusting screw on the WindLock to set the desired spring tension. Avoid over tightening the adjusting screw.

2025 Design Guide

Learn how to create the right amount of shade for the perfect outdoor space!

Get The Design Guide

Retractable Canopy Fabrics

Color sets the mood for any outdoor living space.

Peaceful and calm or bold and exciting, your choice of canopy color is the accent that makes your style stand out. We offer premium canopy fabrics from Sunbrella & Textilene to help you design a patio cover or canopy system that fits your style best.

Sunbrella Fabrics: 100% solution dyed acrylic fabrics resistant to mildew and mold, stains and water, and are designed to stay with you season after season.

Textilene 90: Is a high-performance solar screen fabric that effectively blocks up to 90% of the sun’s rays, minimizing heat transfer, glare, and harmful UV radiation.
