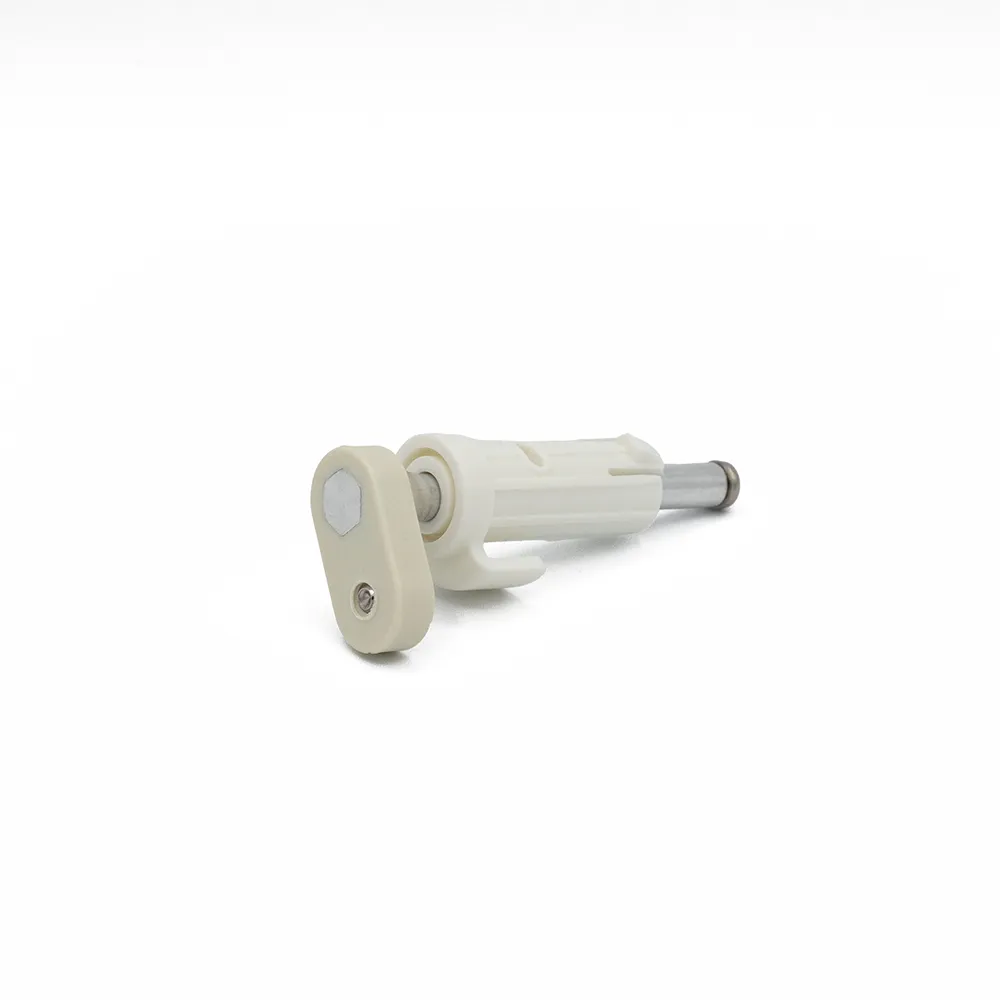

ShadeFlex Roller Lock Pin Assembly
$12.00
- For use with all ShadeFlex manually retractable canopy systems
- Used to affix the canopies on one side of the tracks
- Available in black & white
- Requires two per canopy, one for each side of the crossmember
Also for use with ShadeTree canopy systems
Category:Replacement Parts
Description
Roller lock pins are used in the very last cross member in all canopies made after 2002, replacing the Canopy Roller Hooks. These are designed to lock the last fabric panel of each canopy in place, which is typically located on the house side when the structure is attached to the home.
Note: The Roller Lock Pins were again re-designed in 2009. The new version fits all earlier canopies and serves the same purpose.
Installation:
Preparation: Remove the canopies from the tracks and lay them flat.
Remove old roller:
Insert a flat-head screwdriver into the square locking tab located in the aluminum part of the crossmember.
Push the tab in while pulling on the roller to remove it.
Install new roller:
Align the sleeve locking tab with the square opening in the aluminum crossmember.
Gently tap the roller into place with a rubber mallet if needed.
Additional information
| Weight | 2 oz |
|---|---|
| Dimensions | 3 × 2 × 1 in |
| Color | Black, White |
Related products
-
WindLocks for ShadeFlex Double-Sided Tracks
$24.00 Select options This product has multiple variants. The options may be chosen on the product page -

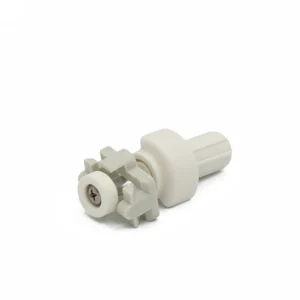

ShadeFlex Front Slide Lock Assembly
