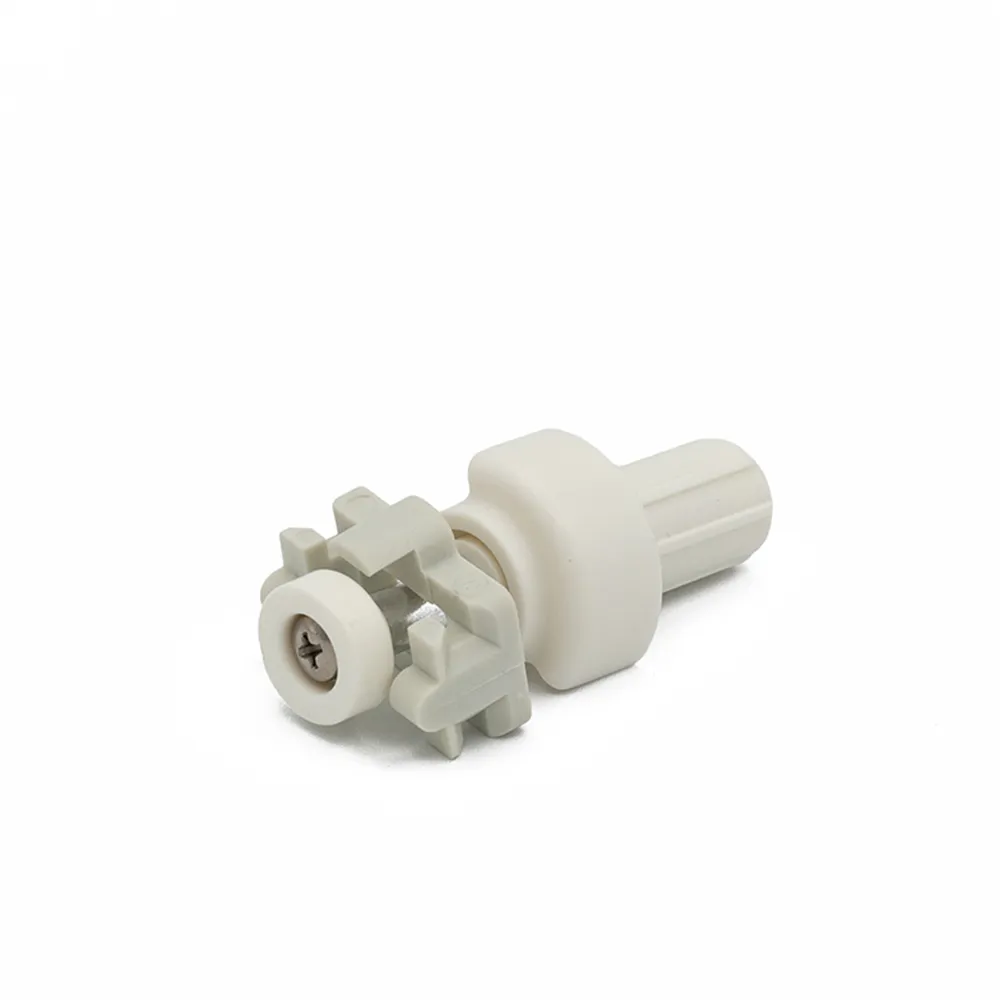

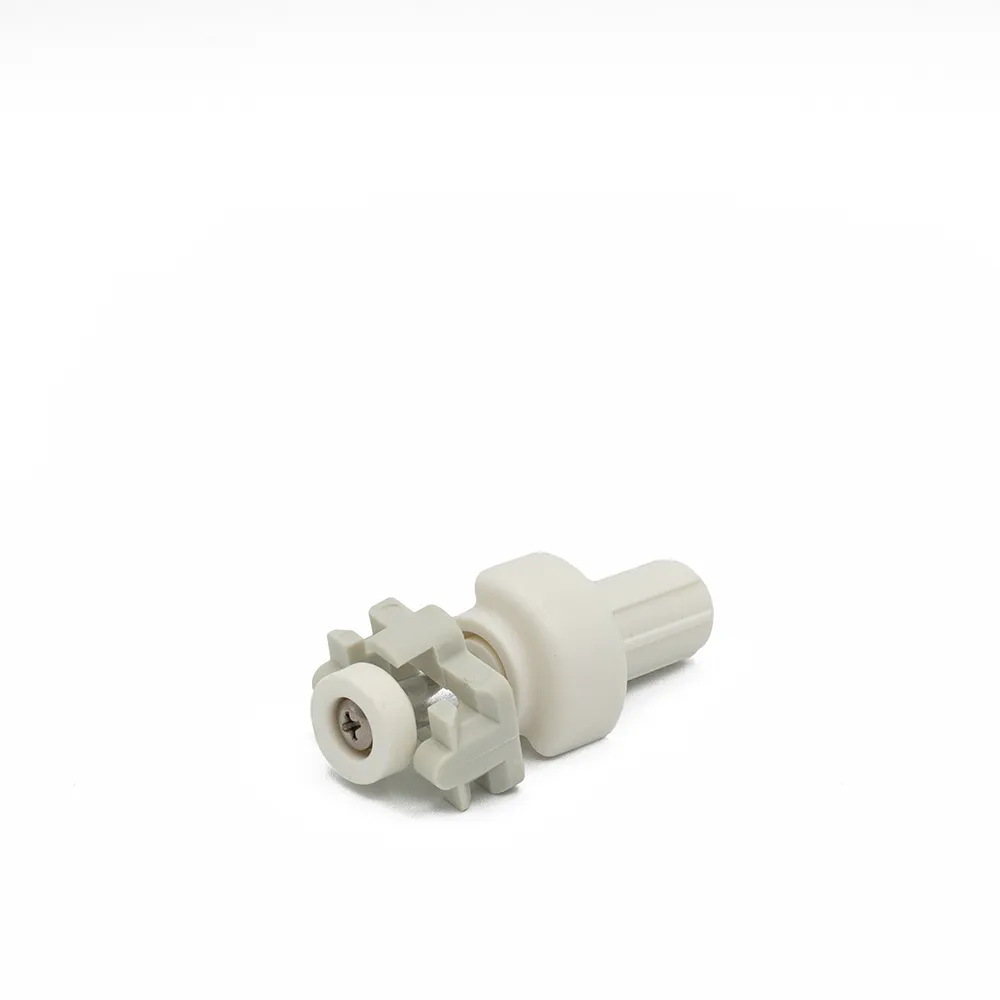

ShadeFlex Front Slide Lock Assembly
$12.00
- For use with all ShadeFlex Canopy systems
- Used to lock the canopy into the windlocks in the extended and retracted position
- Requires two per canopy, one for each side of the crossmember
- Available in white or black
- Includes one security screw per Front Slide Lock.
Also for use with ShadeTree Canopy systems
Category:Replacement Parts
Description
Front slide locks have a tab around the roller that snaps into the WindLock and is designed to hold the canopy in extended or retracted position.
Installation:
Preparation: Remove the canopies from the tracks and lay them flat.
Remove old roller:
Using a #1 Philips screw driver, remove the security screw(s) on the bottom crossmember. These are located closest to the rollers on the left and/or right sides.
Insert a flat-head screwdriver into the square locking tab located in the aluminum part of the crossmember.
Push the tab in while pulling on the roller to remove it.
Install new roller:
Align the sleeve locking tab with the square opening in the aluminum crossmember.
Gently tap the roller into place with a rubber mallet if needed.
Screw security screws back in.
Additional information
| Weight | 2 oz |
|---|---|
| Dimensions | 4 × 2 × 1 in |
| Color | Black, White |
